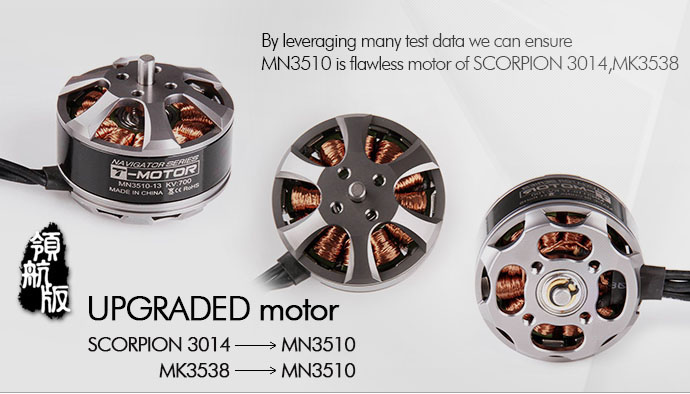

T-Motor MN3510 700KV

WARENKORB
Anzahl Produkte
Totalbetrag

Antriebsmotoren



Sofort verfügbar
48.20 CHF
Hinzufügen

Specifications:

KV......................................................................................................700
Configu ration................................................................................12N14P
Stator Diameter...............................................................................35mm
Stator Length...................................................................................10mm
Shaft Diameter..................................................................................4mm

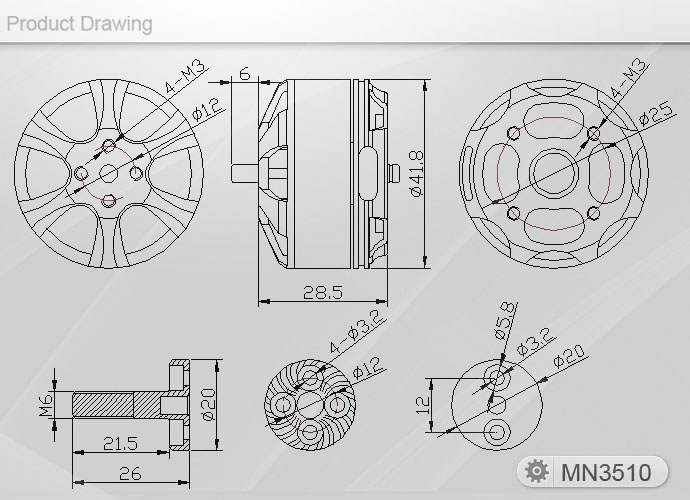

Motor Dimensions(Dia.*Len)...............................................Φ41.8×28.5mm
Weight (g)..........................................................................................97g
ldle current(10)@10v(A).....................................................................0.5A
No.of Cells(Lipo)................................................................................3-4S
Max Continuous current(A)180S...........................................................25A
Max Continuous Power(W)180S.........................................................555W
Max. efficiency current..........................................................(4-10A)>80%
internal resistance...........................................................................50mΩ
