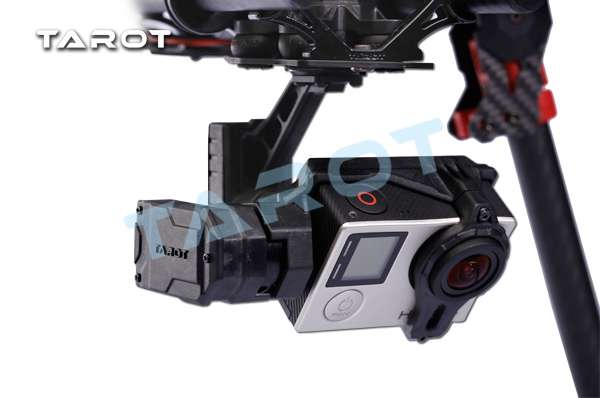

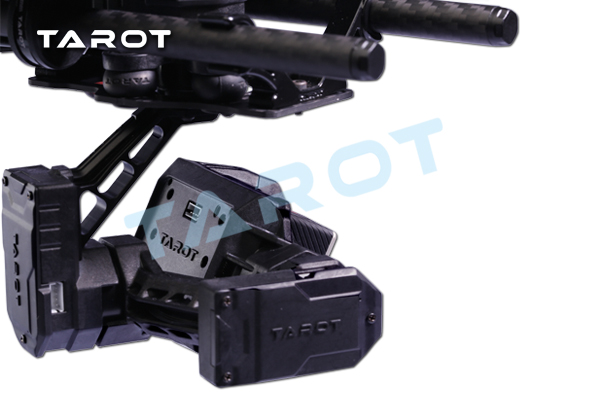

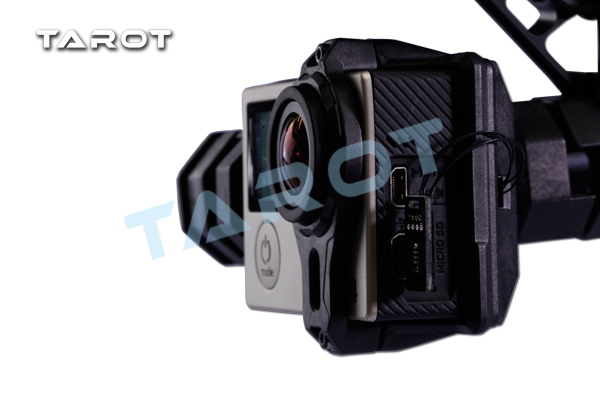

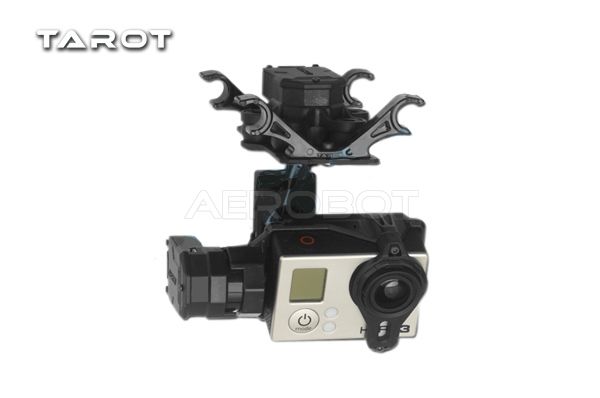

TAROT T4-3D 3-achs Brushless Gimbal

KAMERA GIMBAL > Gimbals

WARENKORB
Anzahl Produkte
Totalbetrag

Kamera Gimbal
Inkl. vorbereitetem Setup. Kein mühsames Einstellen der Parameter nötig.



Dieses Produkt ist nicht lieferbar.
119.00 CHF
Hinzufügen

Für GoPro Hero 3 und 4


Das Tarot T4-3D 3-Achsen Brushless-Gimbal für GoPro Hero3 / HERO4 und ähnliche Kameras. Extrem leicht und mit hoher Stabilität. T4-3D ist die beste Wahl für professionelle Video-und Luftaufnahmen.
Ausgestattet mit unabhängigem IMU-Modul, PF-/und FPV-Modus. Die innovative mechanische Struktur ermöglicht eine regelbare Arbeitsgeschwindigkeit .
Schöne Verarbeitung, profesionelles Design, wie von Tarot gewohnt !

Technische Daten:
für GoPro Hero3,4 und ähnliche Kameras
Input Power: 2S ~ 6S LiPo battery
Mechanical / electrical characteristics:
Angle control accuracy: ± 0.02 °
Maximum controllable speed: Pitch direction (TILT): ± 200 ° / s
Controllable range of rotation: Pitch direction (TILT): -120 ° to + 15 °
Operating Current: 30mA (@ 25V) 50mA (@ 12V)
Stall Current: 350mA (@ 25V) 700mA (@ 12V)
Working temperature: -20 ° C ~ 50 ° C
Weight: 178g
Size: 99mm × 88.5mm × 105.6mm

Features:
PC interface - Windows XP/ VISTA/7/ 8 (32 or 64 bit)
Point follow mode (PF)
First-person view mode (FPV)
Built-in independent IMU modules
TAROT PTZ dedicated servo module
AV output interface
Wide range voltage input
Support conventional receiver / S-Bus receiver / DSM receivers


Lieferumfang:
Tarot T4-3D 3-axis Brushless Gimbal x1
Main controller module x1
Connector cable x1
5V output, servo and video cable x1
USB module x1
Flight controller connector x1
Box x1
