Mateksys FC F405-OSD inkl. FCHUB-6S

WARENKORB
Anzahl Produkte
Totalbetrag

Flugkontroller
Sofort verfügbar
54.00 CHF
Hinzufügen

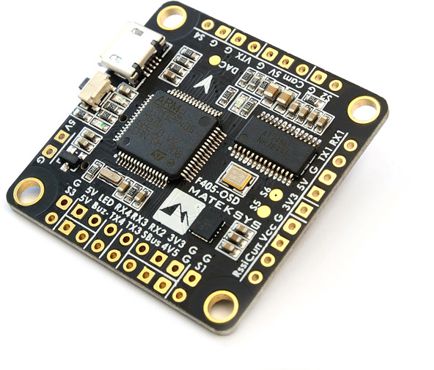

MATEKSYS BetaFlight FC F405-OSD inkl. FCHUB-6S




Technische Daten:

  • MCU: 168MHz STM32F405
  • IMU: 32K ICM20602 accelerometer/gyro (SPI)
  • Support 32K Gyro update & 16K PID Loop
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Blackbox: MicroSD card slot (SD/SDHC)
  • VCP, UART1, UART2, UART3, UART4, UART5
  • Built in inverter for SBUS input (UART2-RX)
  • PPM/UART Shared: UART2-RX
  • Support SoftSerial on S5 & S6
  • Battery Voltage Sensor: 1:10
  • Current Sensor: No (FCHUB-6S option)
  • BEC 5V & 10V: No (FCHUB-6S option)
  • LDO 3.3V: Max.300mA for Spektrum RX
  • Spektrum BIND_PIN: RX4
  • WS2812 Led Strip : Yes
  • Beeper : Yes
  • RSSI: Yes


    • 2x LEDs for FC STATUS (Blue, Red)
    • 6x PWM / DShot outputs without conflict
    • 5x UARTs
    • 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
    • 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
    • 1x Side-press button for BOOT(DFU) mode

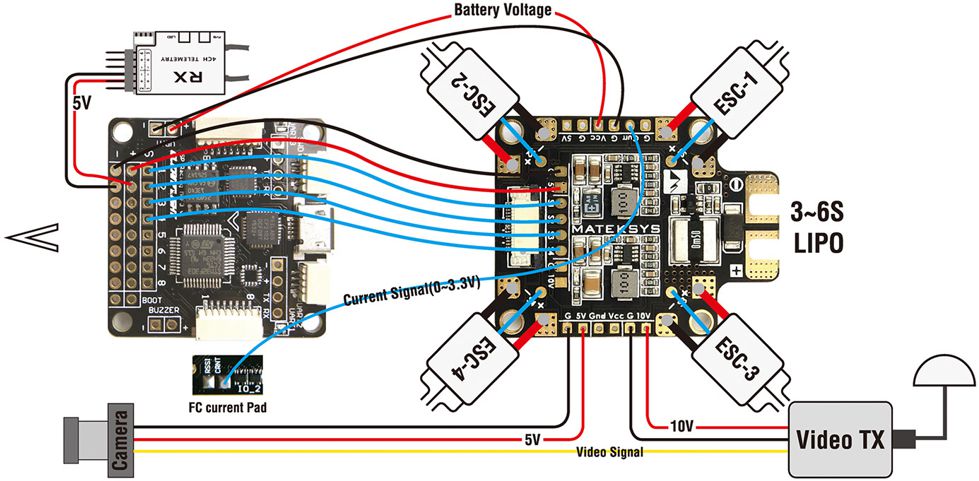

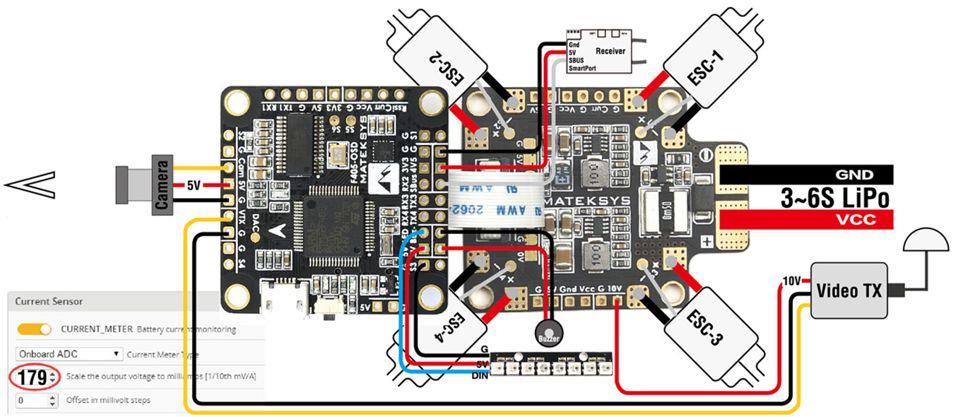

    • 1x 16pin bottom mounted FFC Slot for FCHUB-6S connection
    • 36x36mm PCB with 30.5mm mounting holes



MatekF405 Target


WIKI


Firmware based on OpenSource BetaFlight


Lieferumfang:
1 x  Mateksys FC F-405OSD

1 x Mateksys FCHUB-6S
