TAROT 5D3 360° Professionel Brushless Gimbal - AEROBOT UAV Flight Systems Multicopter und Zubehör

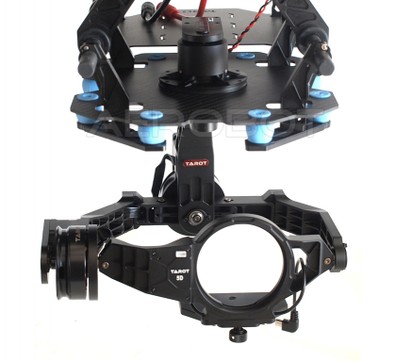

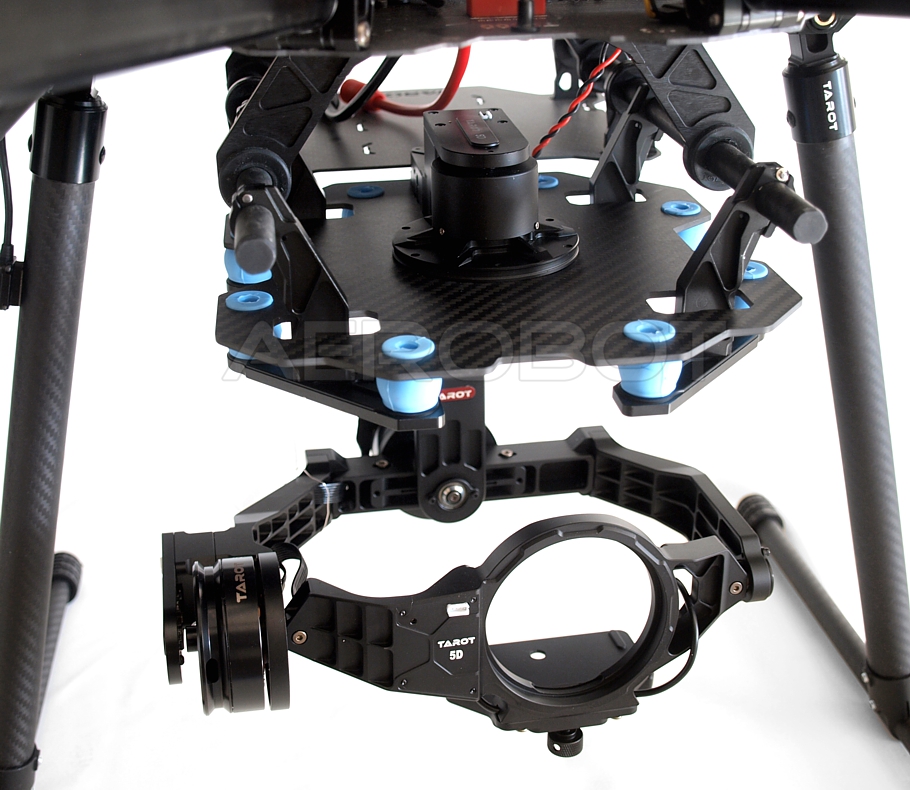

Das TAROT 5D MARK III Brushless Gimbal ist eine Highend Lösung für professionelle Luftaufnahmen. Es kommt fertig vorkonfiguriert für grosse DSLR Kamers wie CANON EOS 5D MARK II oder III.

Product Features:

•  Computer interface supports setting gesture lock mode (AL)


•  Point follow mode (PF)


•  First-person mode (FPV)


•  Built-in independent IMU modules


•  TAROT PTZ dedicated servo drive module


•  AV output interface supports a wide range of camera shutter control voltage input support


•  S-Bus / PPM / DSM receiver supports


Peripherals:

•  Support Camera Type: CANON EOS 5D MARK III


•  Supports the lens type (currently): CANON EF 17-40mm f / 4L USM


•  Head Master supports input power: 3S ~ 6S LiPo battery control requires at least four free receiver channel


Mechanical / electrical characteristics:

•  Angle control accuracy ± 0.02 °


•  Maximum controllable speed:


•  The direction of rotation (PAN): ± 200 ° / s


•  Pitch direction (TILT): ± 200 ° / s


•  Roll direction (ROLL): ± 200 ° / s


•  The controllable range of rotation direction of rotation (PAN): ± 360 ° continuous rotation pitch direction (TILT): -135 ° to + 45 °


•  Roll direction (ROLL): ± 48 °


•  Operating Current: 120mA (@ 25V) 180mA 3S-6S Li (11V-26V)


•  Stall current: 4A (@ 25V) 8A (@ 12V)


•  Operating ambient temperature -20 ° C ~ 50 ° C


•  Weight 1.51Kg


•  Size 215mmX240mmX246mm


•  Scheduling software installation requirements


•  Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)


T he state intellectual property has been awarded the TAROT model., Ltd five patents. Any units orindividual without the license holder manufacture, copy, use and sale the product will be patent lawsuit.
 State Intellectual Property has been granted TAROT HM Ltd. Related five patents.  Any unit or individual without the license holders, manufacturing, reproduce, use, sales of this product will be faced with a patent infringement lawsuit.
 Patent No. patent number: 2014201546579
 Patent No. patent number: 2014201546583
 Patent No. patent number: 2014201546598
 Patent No. patent number: 2014300741581
