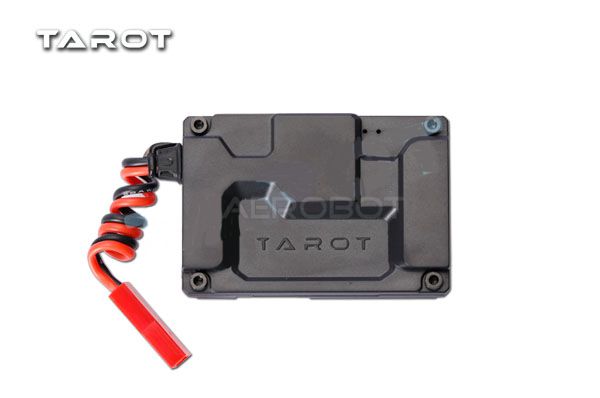

ZYX-OSD TL300C can overlay the basic flight information of the aircraft to the video, such as altitude, speed, attitude angle, battery voltage, the distance between aircraft and return point, control mode, return to home status and etc.
Equipped with data record function. It can save the flight data to mini SD card for easier analyzing. (Please format the mini SD card to FAT32 format for the first time.)
ZYX-OSD can identify PAL/ NTSC automatically. User can switch the video input sources from the radio transmitter.
Note:ZYX-OSD is compatible with ZYX-M flight controller system

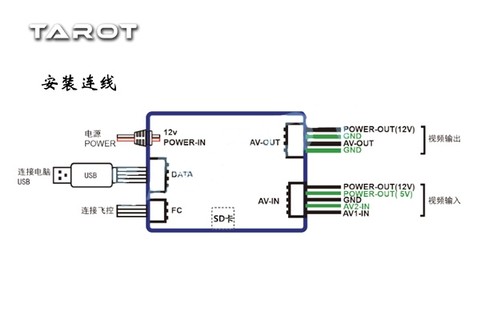

Input voltage and current: 12V (80mA) (Without power output)
Output voltage and current: 12V (1.5A) / 5V (2.0A)

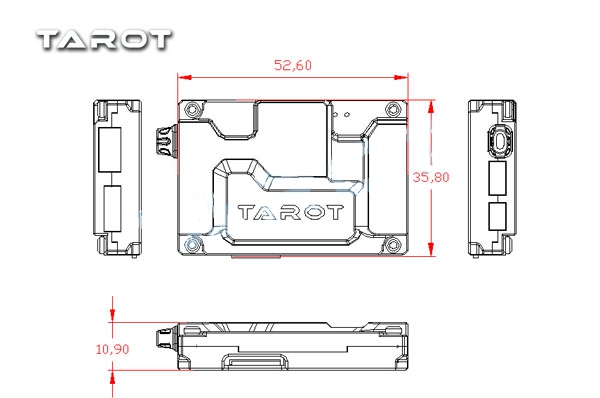

Size: 53mm x 36mm x 10mm
Video Format: PAL/NTSC (Automatic Identification)
